And today was going so well, too...

codezer0

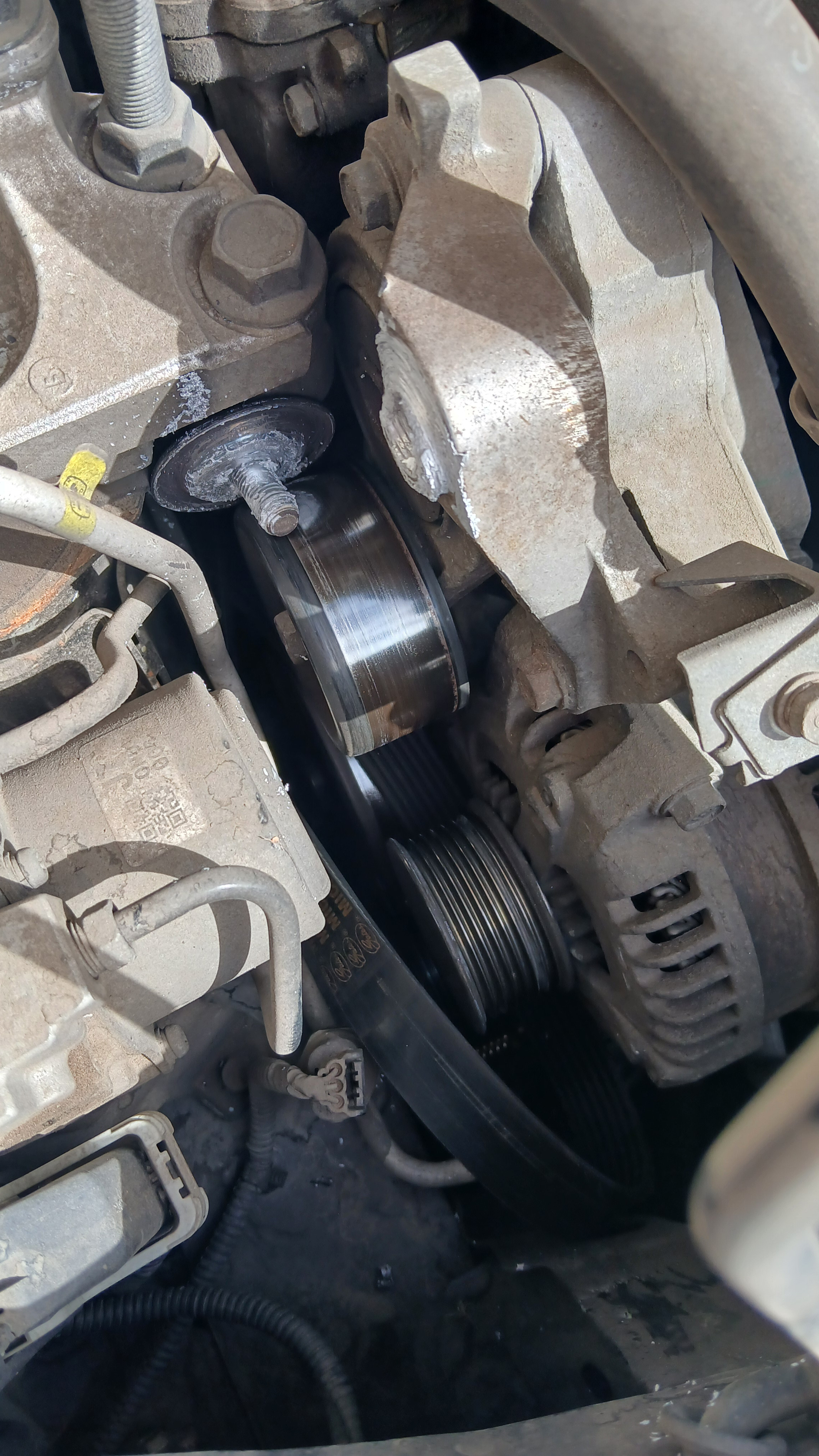

I don’t even know how this happened. But now as i wait for a tow, i gotta figure out what the hell this is all going to cost me to fix. Just… Eff my life, man.

Guy54435

Couple junkyard parts, maybe a new belt, a few tools, little bit of time and you will be good to go.

Somewhat-Reticent

Where’s your battery with respect to what looks like a trail of corrosion?

codezer0

Corrosion?

Uh, on the other side of the engine?

Guy54435

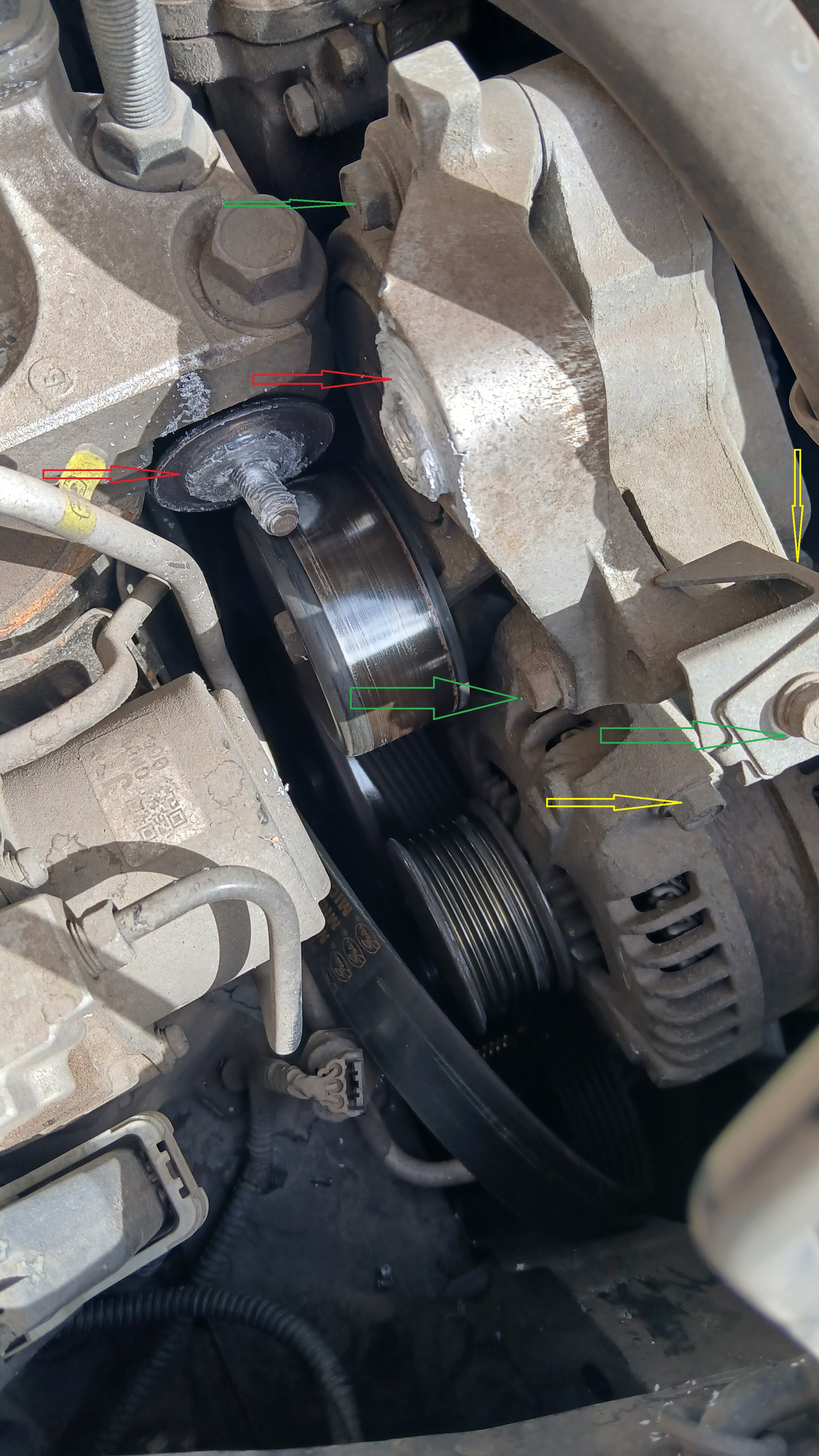

Take bolts out that are green and perhaps the yellow ones, hard to see. The red arrows go together taking out the green bolts and perhaps a couple hidden that i cant see allow you to pull the idler pulley housing off, that is the part you need, like I said probably get it from junkyard. Maybe a belt also, The pulley under the red arrow area is the tensioner 3/8ths or ½″ ratchet or breaker bar moves that. Hopefully nothing else is damaged but from what I can see it does not appear that there is other damage. Not that hard to do just take picture first. From the looks of it the hardest part will be fishing belt down through. Also looks to be bolt coming from backside under hose.

codezer0

Augh, thought i ordered the right thing, but the motor mount(s) and the tensioner bit are fine. But i didn’t know what the hell that broken bit is called to look it up.

And right now, it looks like it might be a dealer only part. 😭

Guy54435

codezer0 Idler pulley (housing Bracket?) is the broken piece. Go to a pull apart place it will be much cheaper.

real_aurgathor

codezer0 And right now, it looks like it might be a dealer only part.

I can’t recall the URL any more, but some time ago I found some web sites that would search junkyards for parts – this item shouldn’t be too big and too heavy, so shipping would be reasonable.

If it’s available new from a 3rd party, than there’s a better than 99% chance that rockauto will have it. Conversely, if you can’t find it on rockauto, chances are good that you won’t find it in any other auto parts store.

There is a small chance that you may be able to find it on eBay, craigslist, or facebook marketplace, but don’t spend too much time on them. Just go to the dealer if you come up empty handed elsewhere.

codezer0

Guy54435 Just tried that, and what few Hondas i could fined, the whole engine was taken out. With no engine, no bracket.

Guy54435

codezer0 Well since you know what it is called buy new or call yards and see (long shot) if they have it already off, or craigslist or facebook market place, Should not be too hard to find used if you live in an area with a large population.

LiteMeUp

eBay? https://www.ebay.ca/itm/234637151912

tiredrunner

I’m gonna guess you have V6, which makes engine compartment much more tighter to work in.

Idler pulley on my I4 chirps lately when it’s very humid outdoors. You’ve just discouraged me from doing this job. 😃

Sorry. I’m just here for the comments.

Andyross

That upper-red arrow seems to point at a broken threaded hole. If that is where the idler was originally screwed into, it may not sit properly. The entire bracket may need to be replaced.

px_eliezer_

real_aurgathor I can’t recall the URL any more, but some time ago I find some web site that would search junkyards for parts – this item shouldn’t be too big and too heavy, so shipping would be reasonable.

Maybe one of these:

https://www.car-part.com/index.htm
https://www.lkqonline.com/

real_aurgathor

px_eliezer_

Possible – I didn’t need any used parts lately.

But I’m thinking about replacing the E4OD in my Bronco with a ZF5 if I can obtain one, and the only realistic sources for that are junkyards or private sellers.

Thane_Bitter

Is its an Accord? Doesn’t look quite like a civic. You might have to put blocking under the engine and lift it up so you can then take off the side engine mount. WIth it clear you will have a bit more room to tackle the tensioner.

LiteMeUp

Thane_Bitter Is its an Accord?

Going by his post history, it’s a 2011 Civic Si.
The eBay link I gave should be the correct part.

Thane_Bitter

LiteMeUp Ah the vtech one.
Good, it does have a timing change so as long as the tensioner didn’t smash anything else he should be ok. The fan site for that generation is still up and running: https://www.8thcivic.com/ loads of info there.

Guy54435

Find the part number do a cross reference see if it is on another vehicle as well.

codezer0

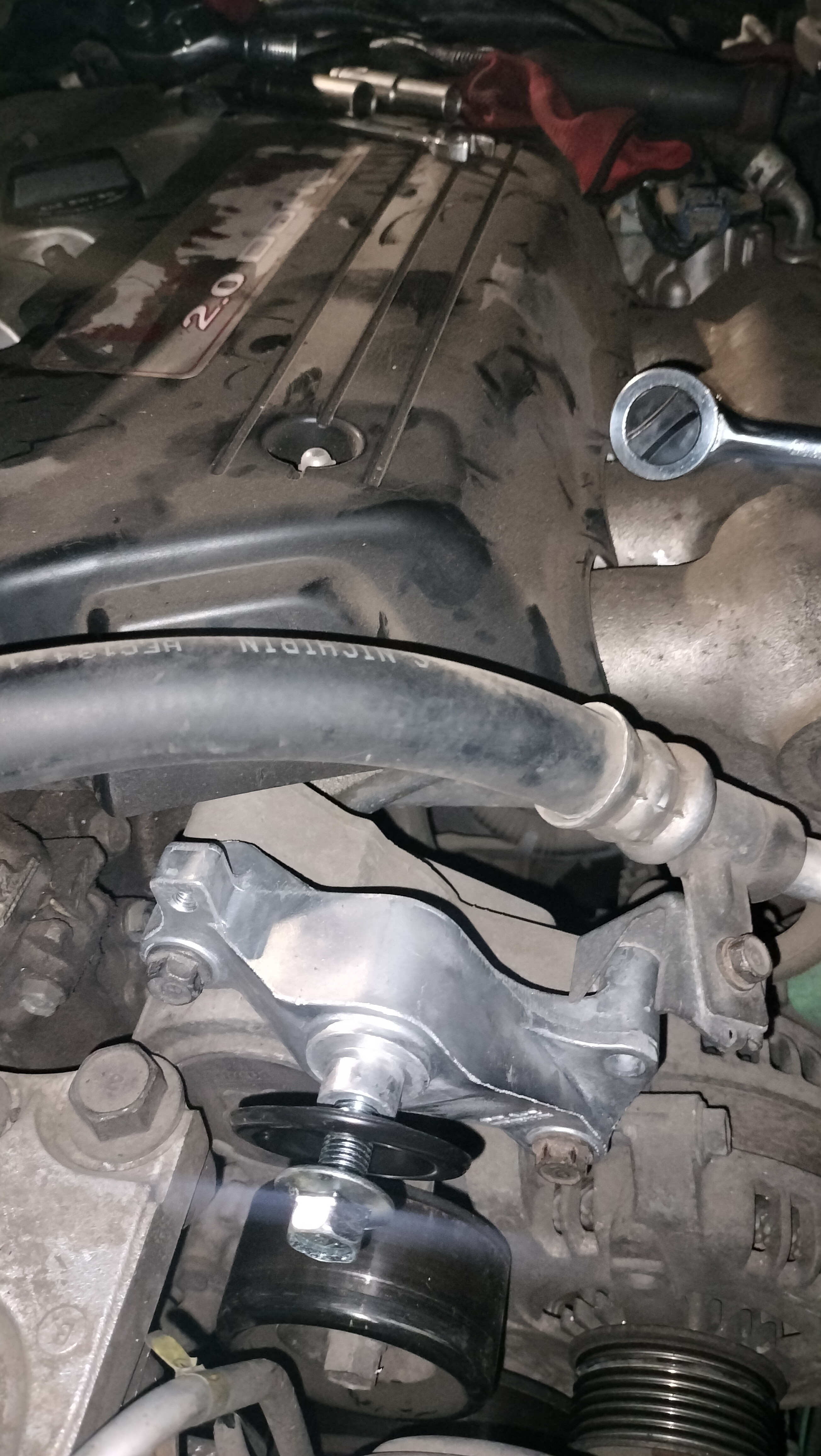

Least these parts arrived, finally. Now, i think, should just be a matter of getting a new pulley, and belt.

Guy54435

codezer0 Glad you got the parts
